PUNA, CORDILLERA ORIENTAL, SIERRAS SUBANDINAS, SISTEMA DE SANTA BARBARA Y CHACO SALTEÑO

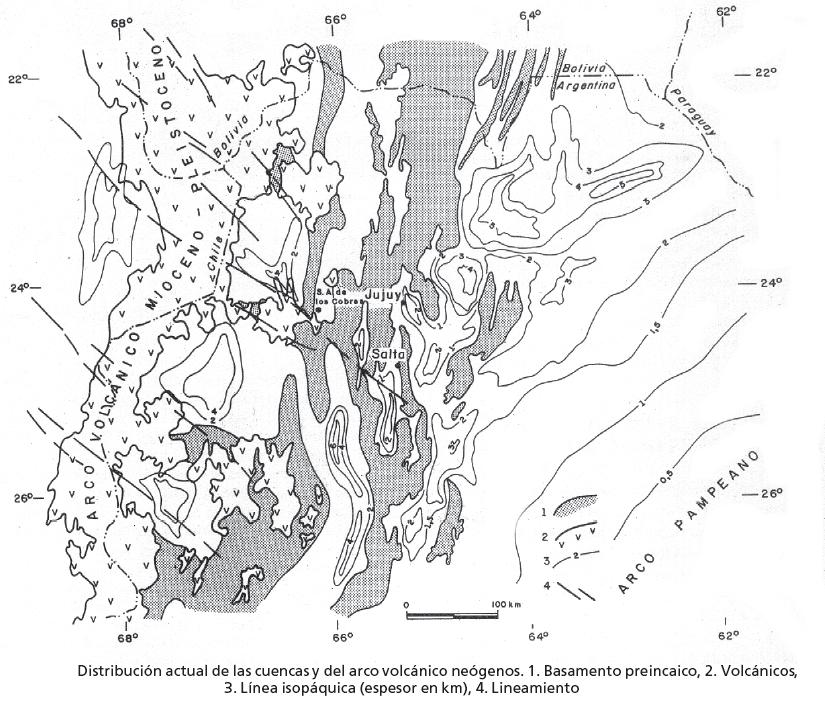

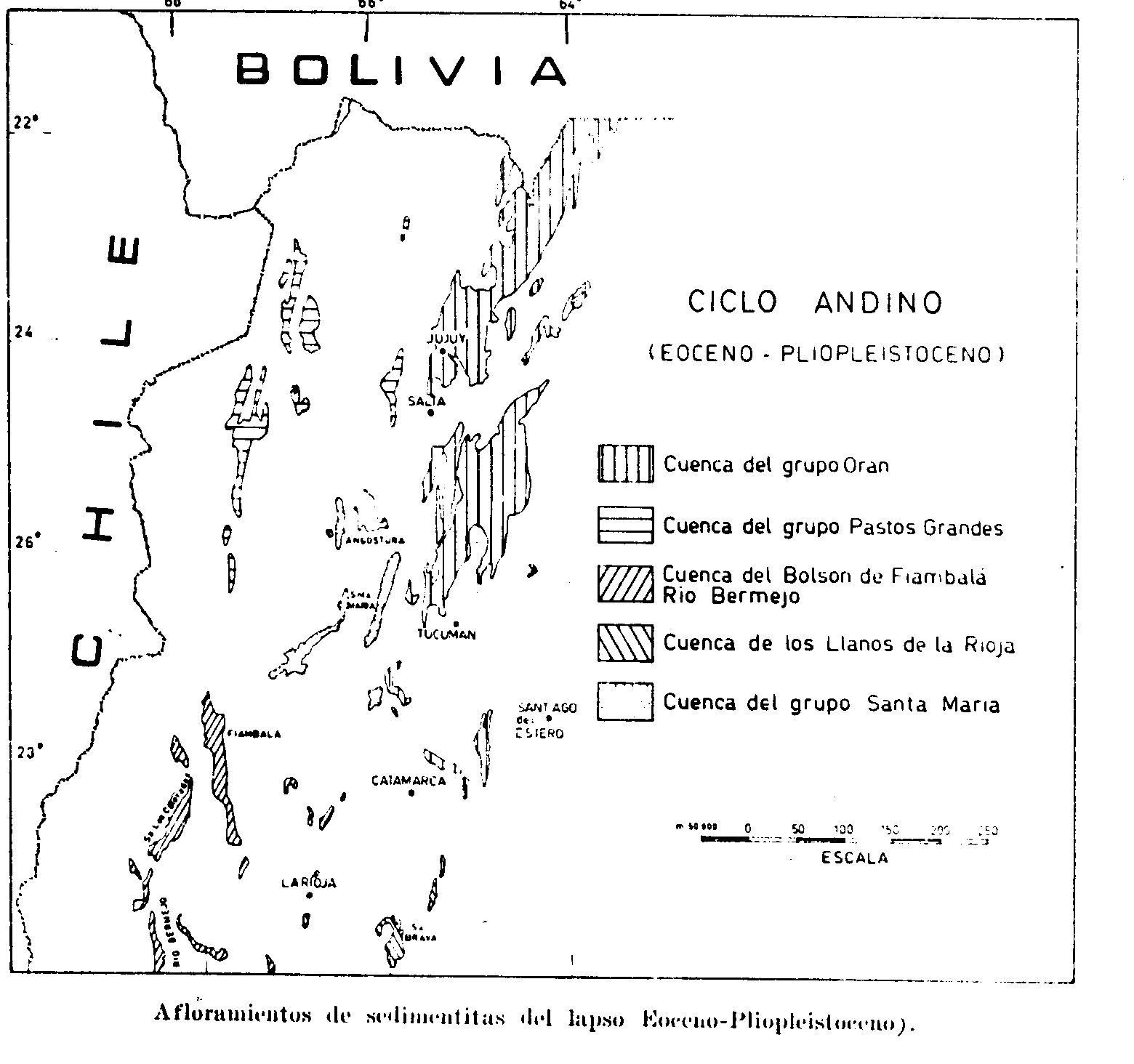

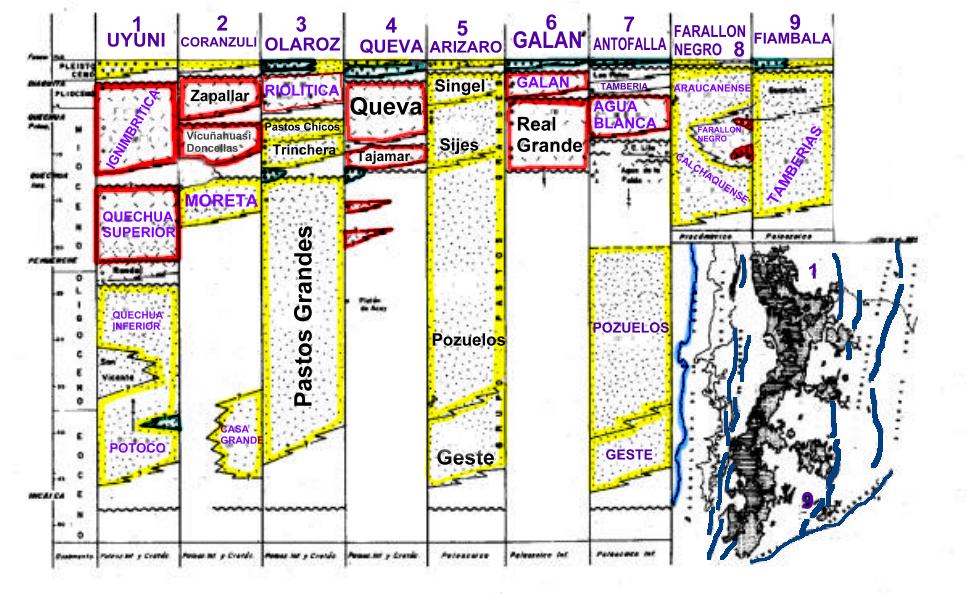

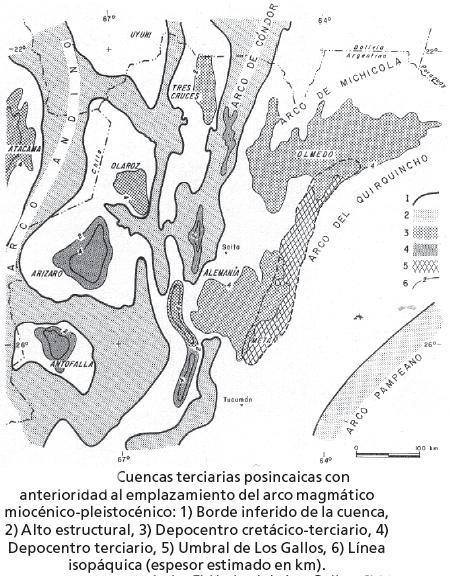

Distrib cuencas del NOA          Estratigrafía Andico de la Puna    Estratig  Andico Terciario Subandino





Columnas del terciario subandino.gif (63230 bytes)       Config_estruct_y_estrat_subgr_metan.gif (63712 bytes)          Conf_Rio_Guanaco.gif (126401 bytes)           piquete.gif (44941 bytes)

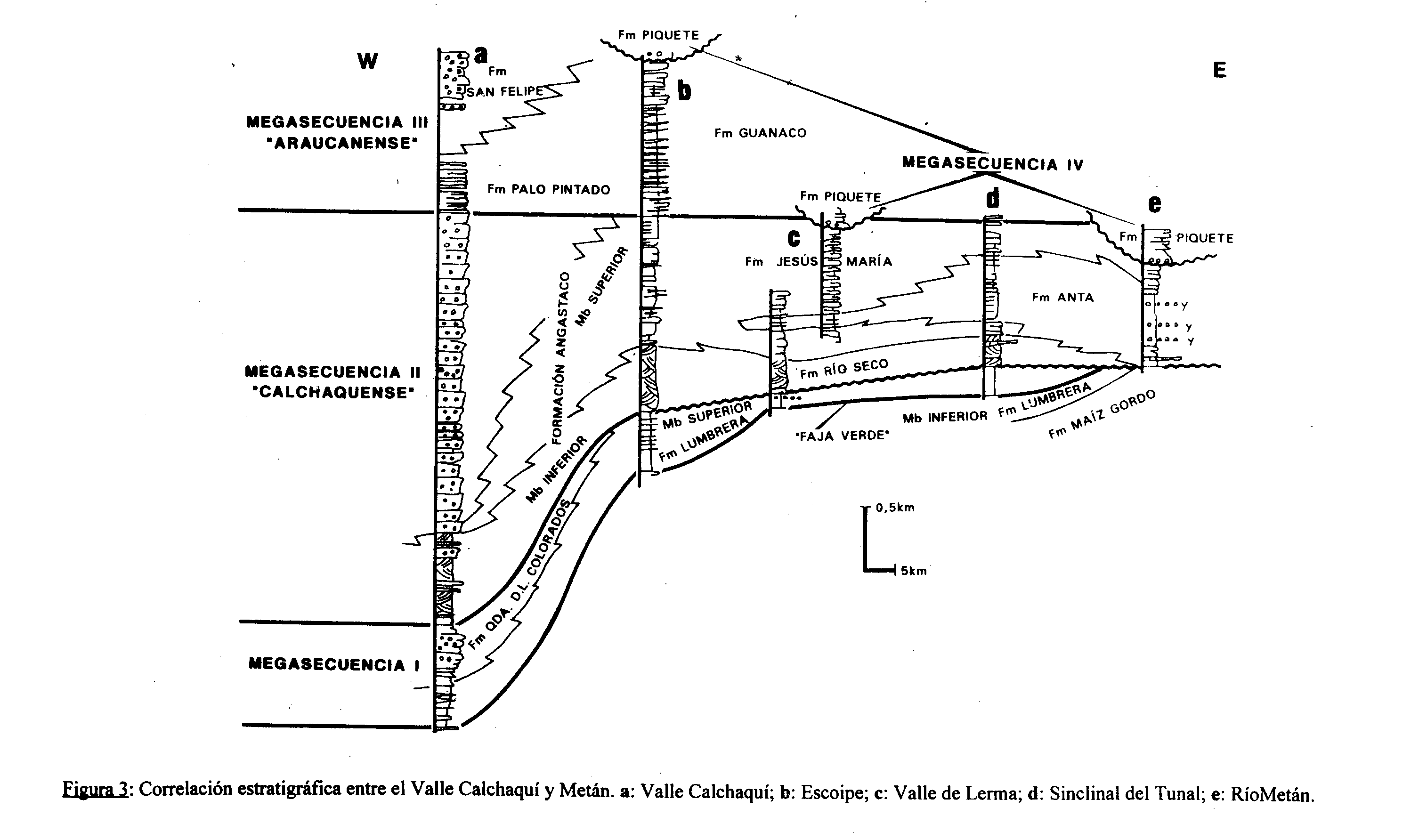

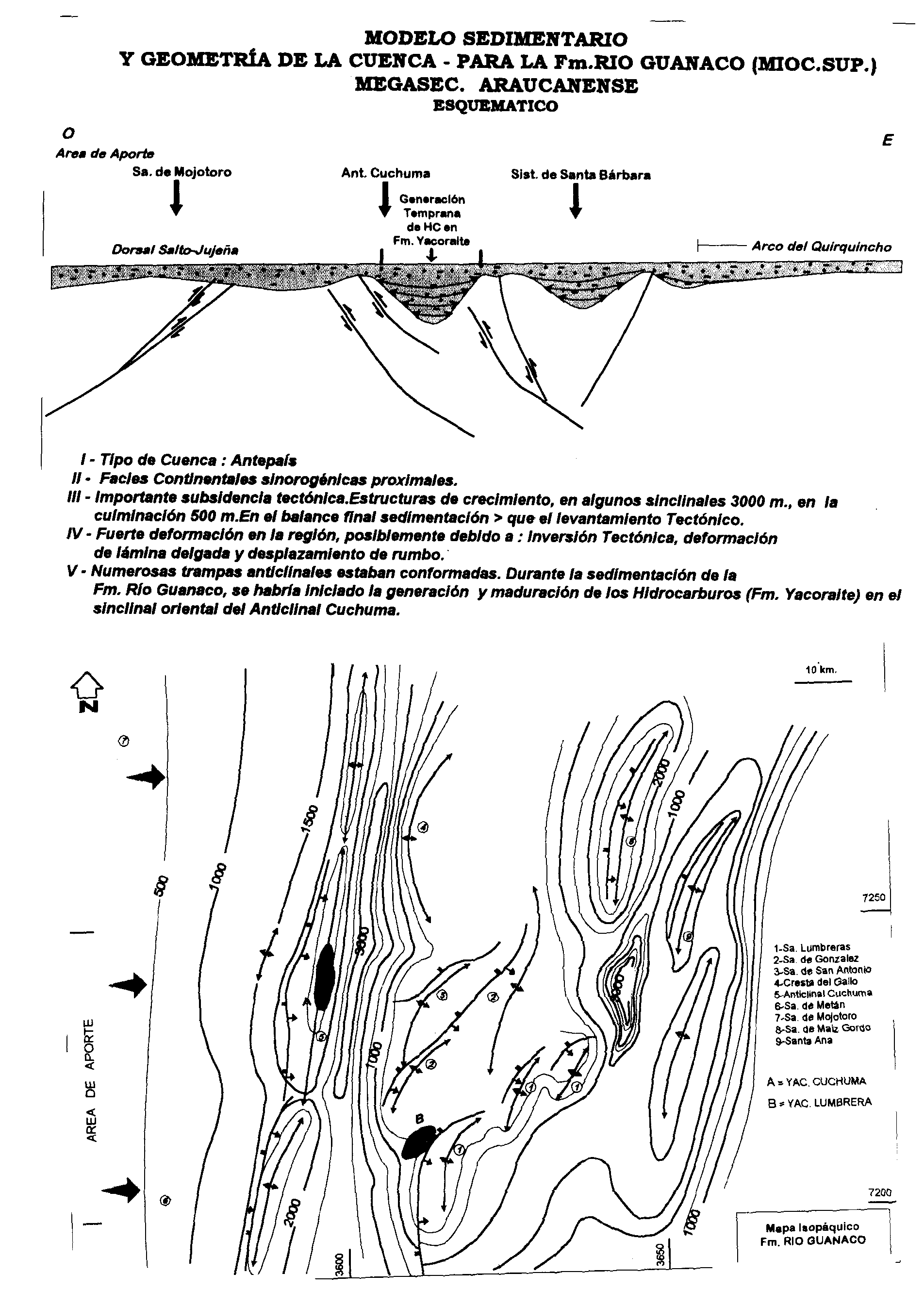

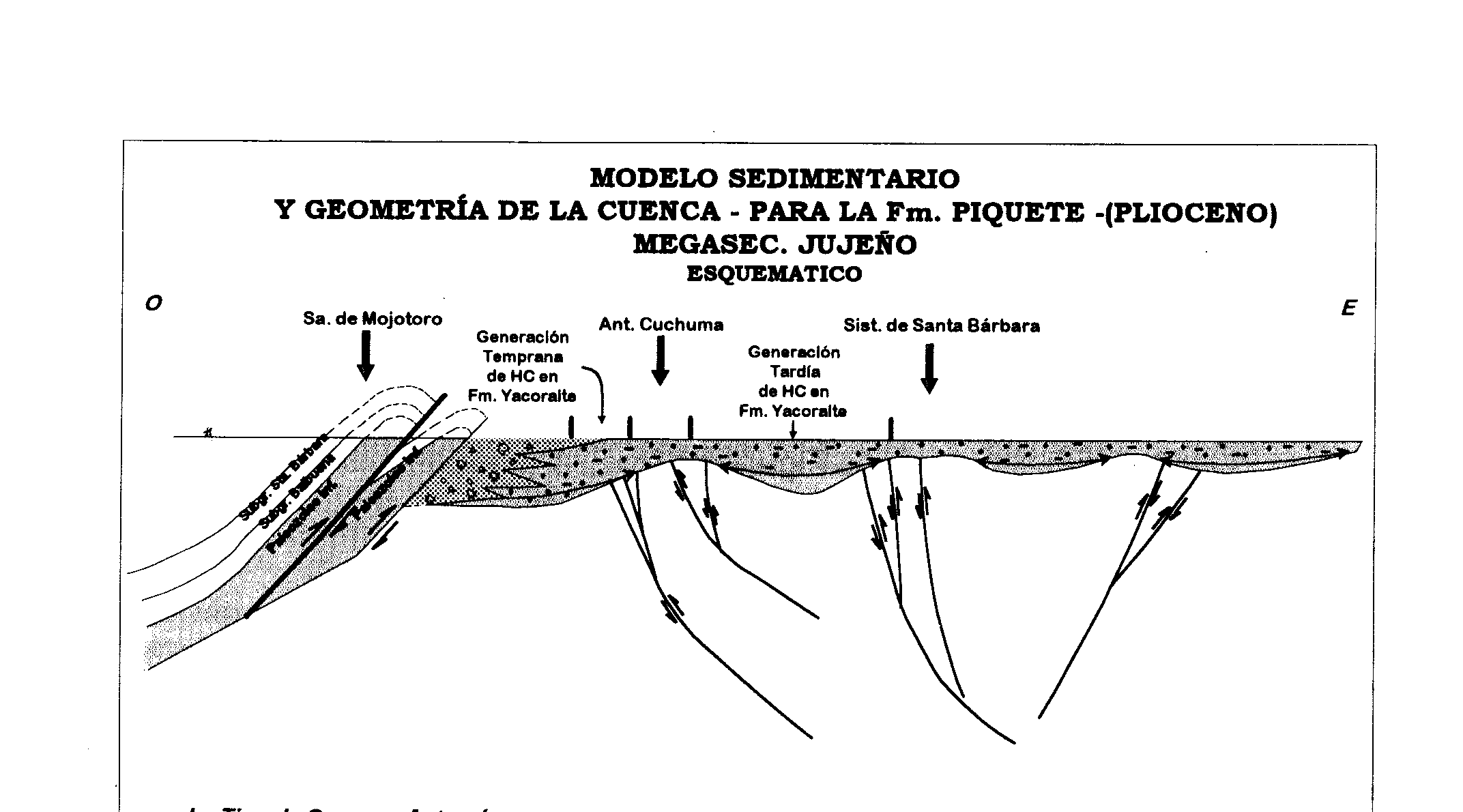

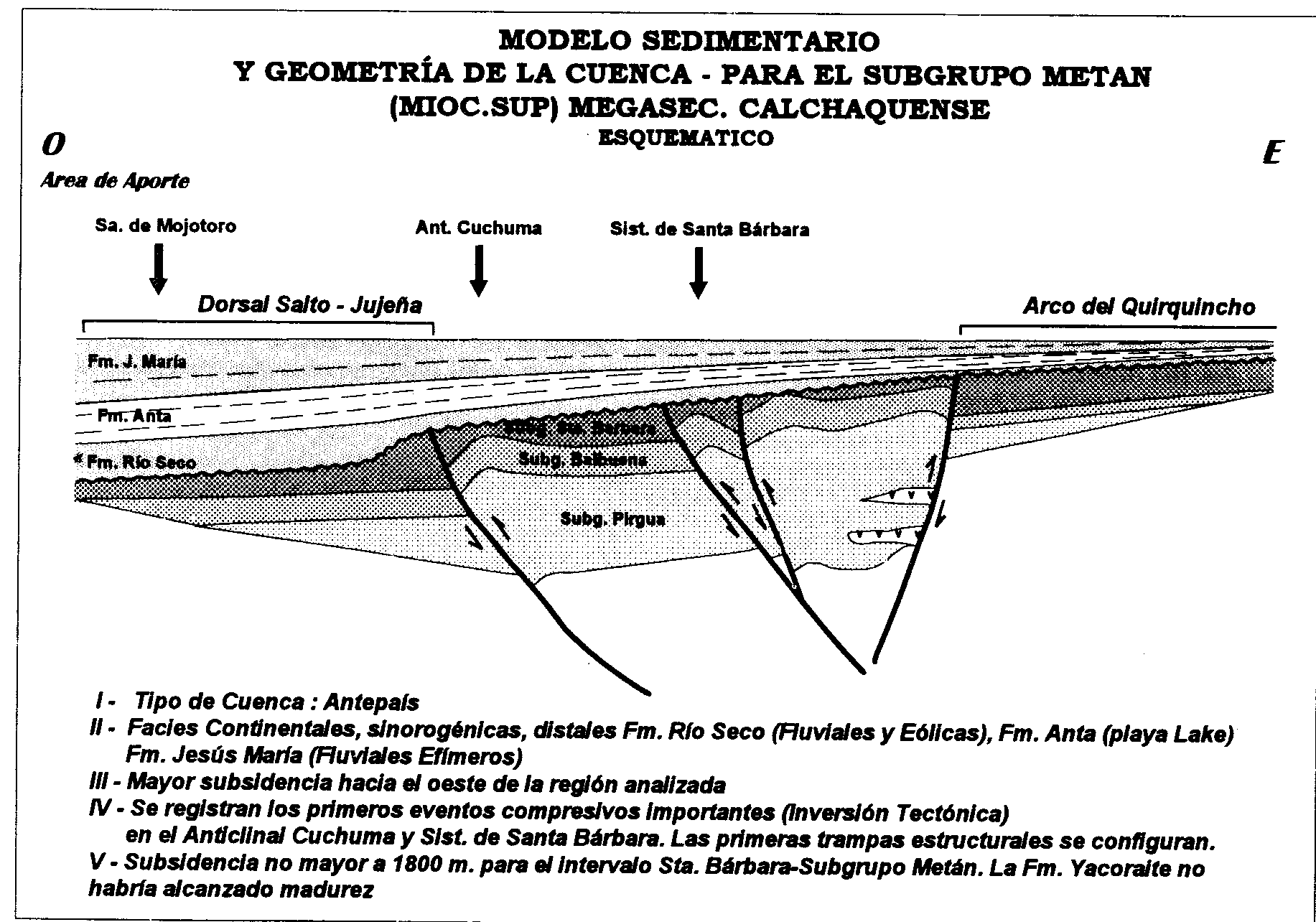

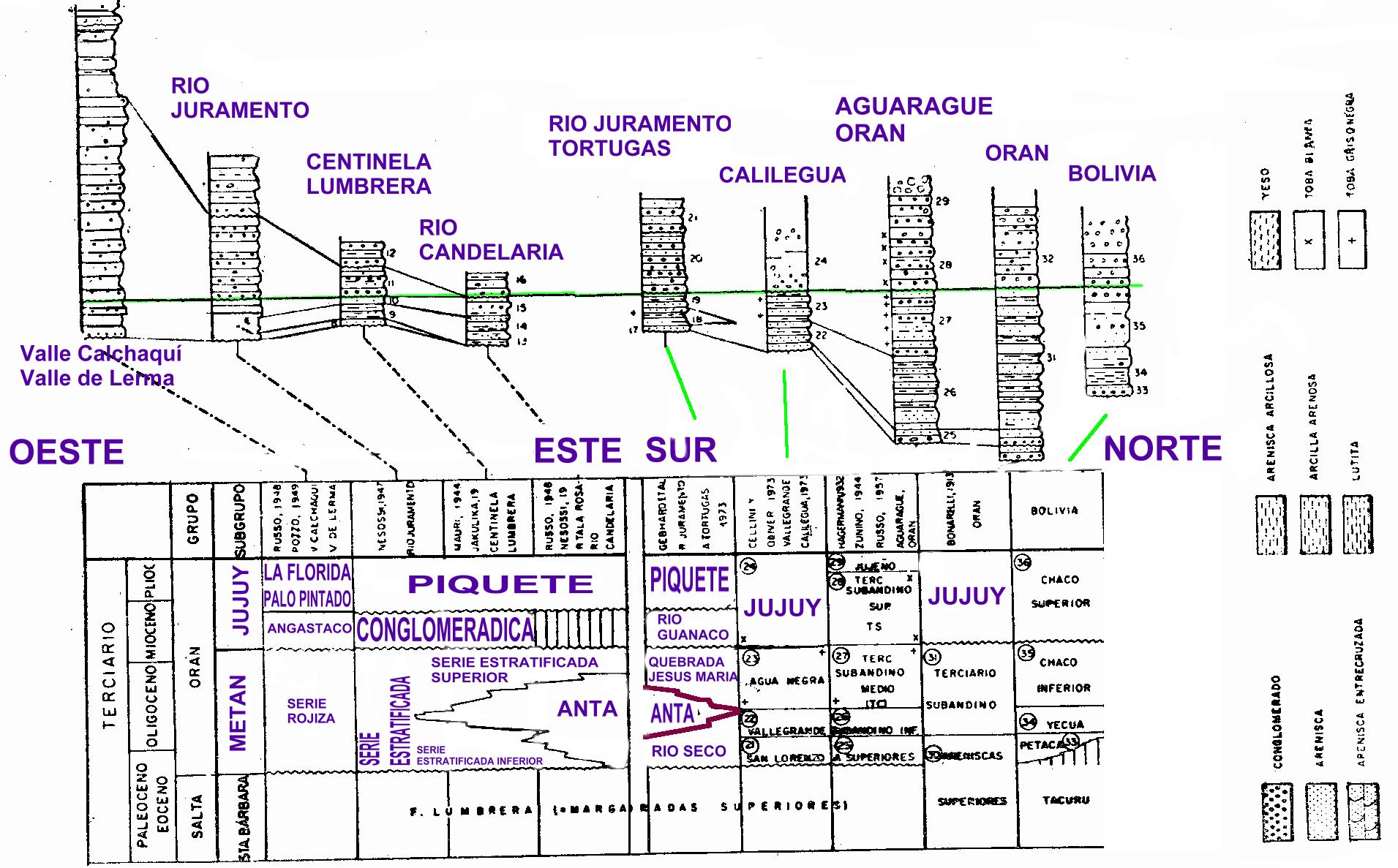

Corte  Andico Terc Subandino              Conf. subgr. Metán           Fm. Río Guanaco            Config. Fm. Piquete



F     G           Cortes de la Cord Oriental.gif (20163 bytes)     Cortes Qda de Huamahuaca a la altura de Tilcara.gif (26233 bytes)

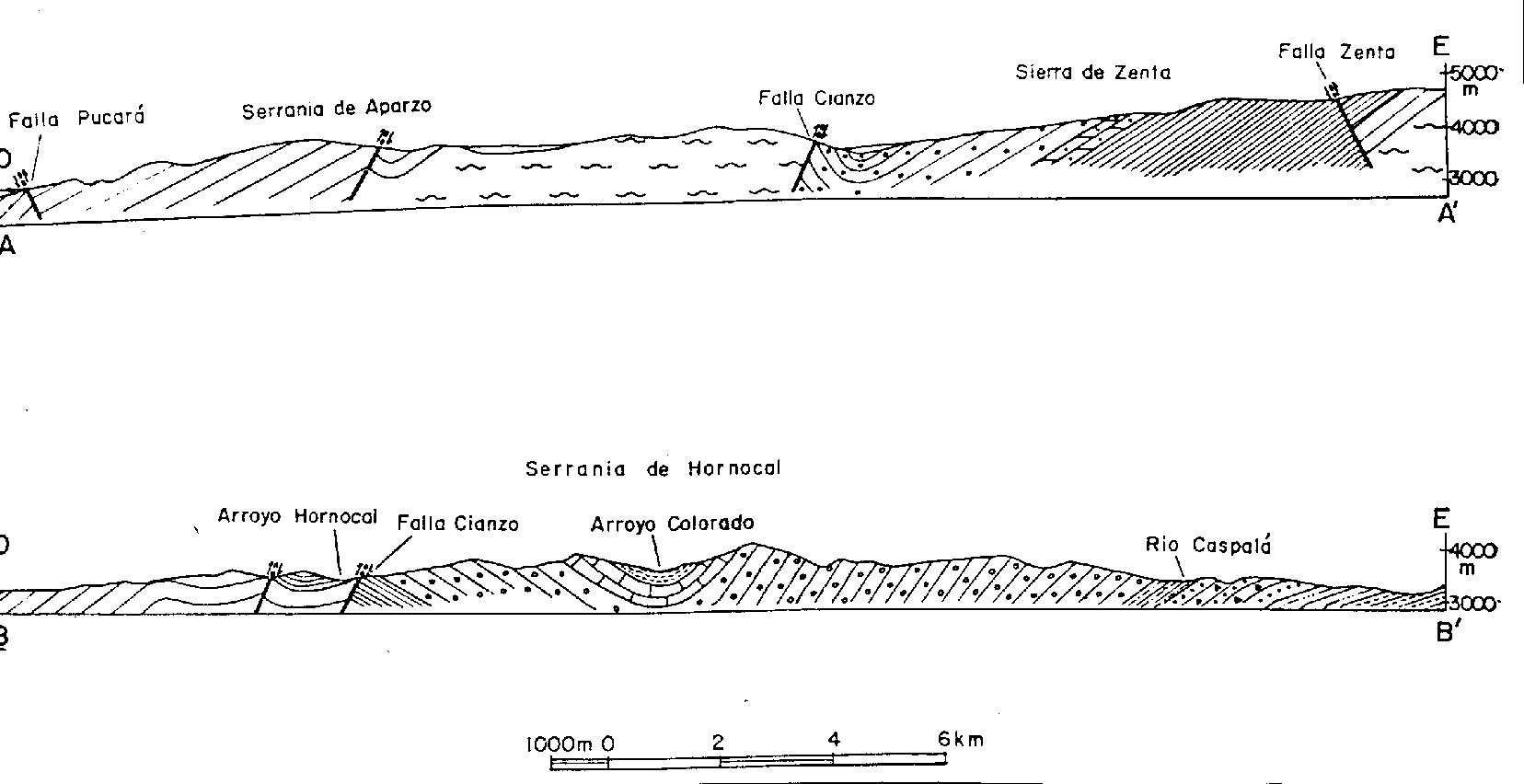

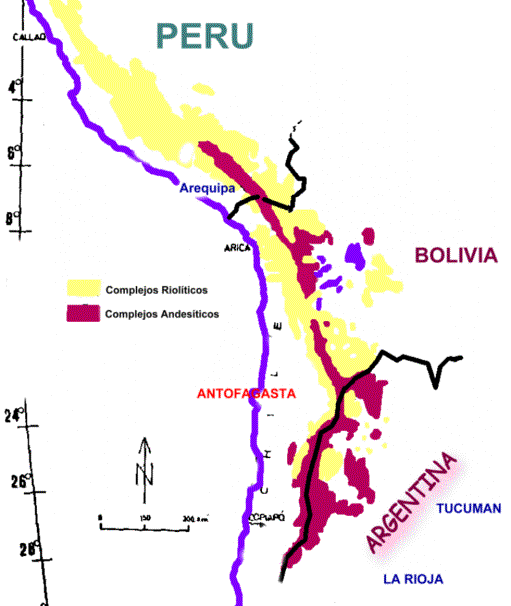

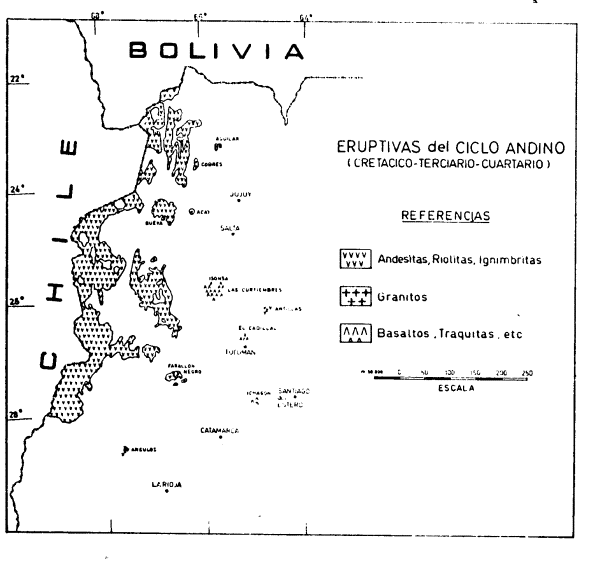

Magmatismo Andico NOA       Magmatismo NOA-Chile-Perú  Cortes E-O de Cord Oriental    Cortes E-O Qda. Humahuaca



 Perfiles Salr de Cahuchari.gif (53888 bytes)                  H         evolucion del ciclo andico en el noa.gif (52122 bytes)

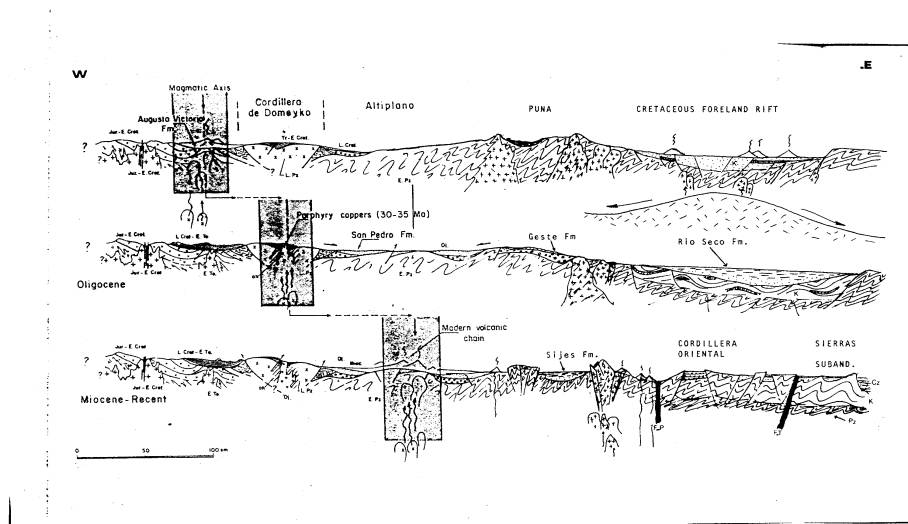

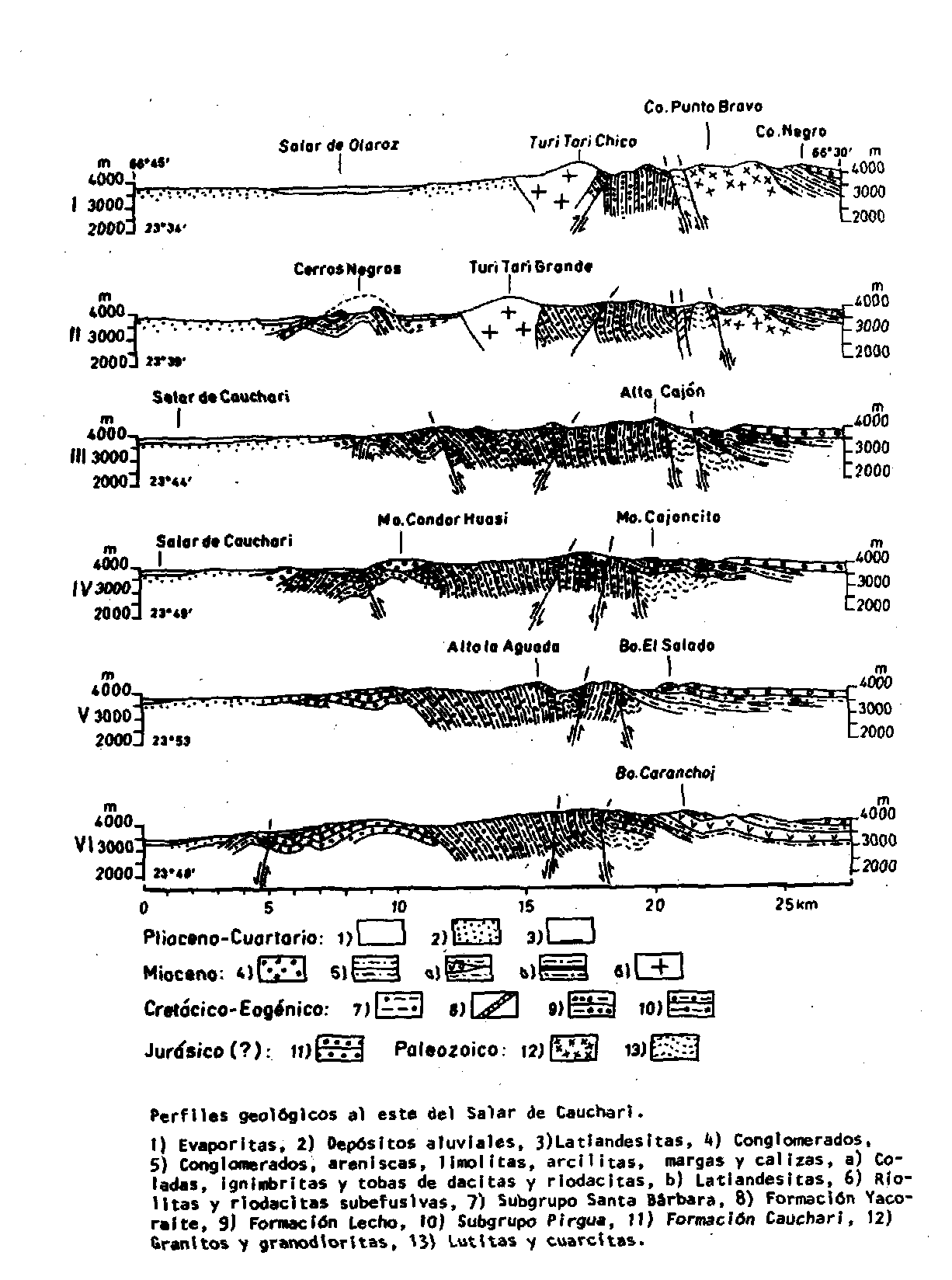

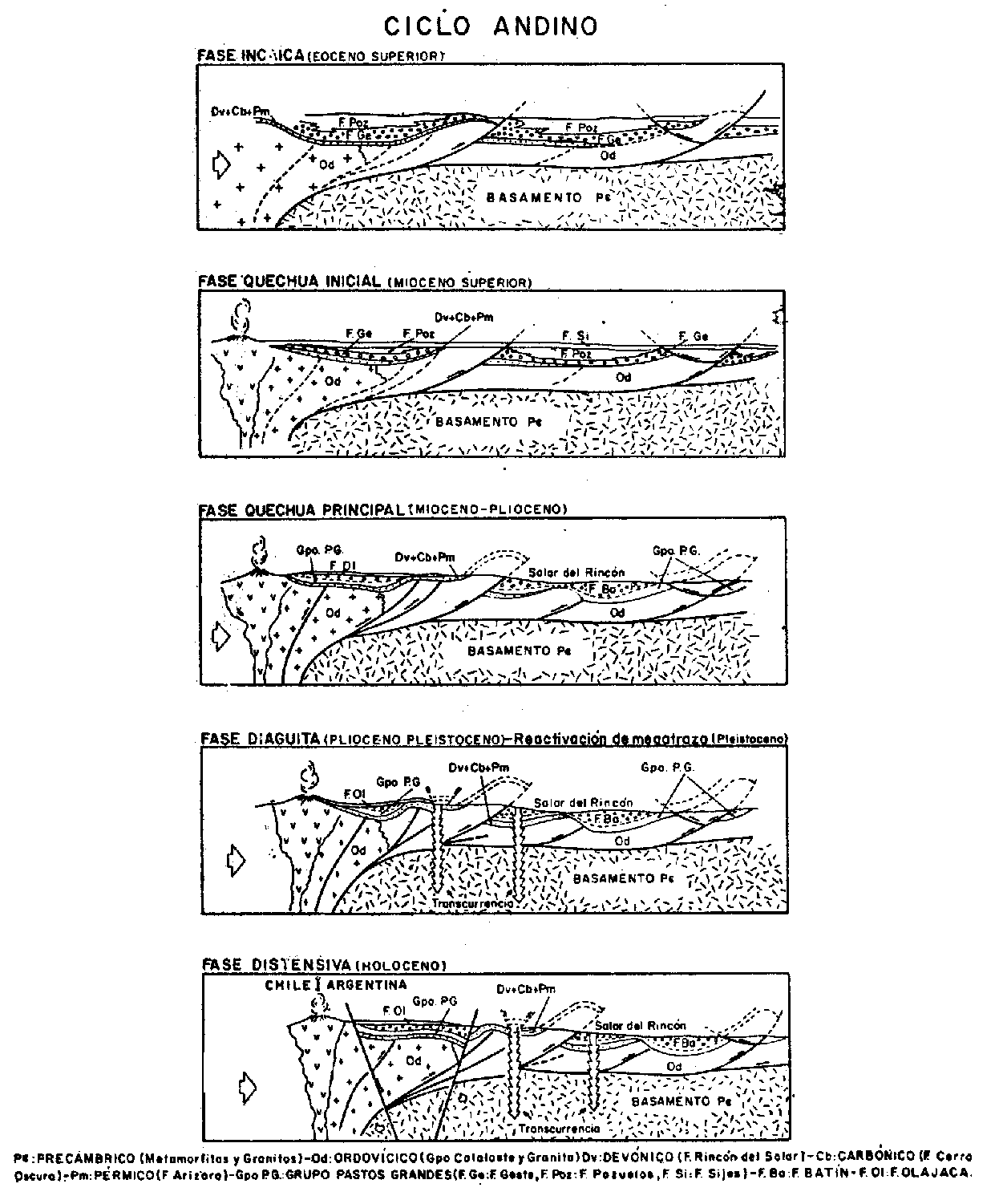

Cortes E-O Salar de CauchariEvolución magmatismo Andico Evolución geológica Andico







Kinematic variations across EasternCordillera at 24°S (Central Andes): Tectonic and magmatic implications V. Acocella, L. Vezzoli, R. Omarini, M. Matteini, and R. Mazzuoli. Tectonophysics 434 (2007) 81–92
Carrera, J.A. Muñoz , F. Sabat , R. Mon b, E. Roca. The role of the inversion tectonics in the structure of the Cordillera Oriental (NW Argentinean Andes). Journal of Structural Geology 28 (2006) 1921-1932
Middle Eocene deformation and sedimentation in the Puna– Eastern Cordillera transition (23°–26°S): Control by preexisting heterogeneities on the pattern of initial Andean shortening F. Hongn , C. del Papa , J. Powell , I. Petrinovic , R. Mon and V. Deraco. Geology, March 2007; v. 35; no. 3; p. 271–274; doi: 10.1130/G23189A.1;

Soler, M.M., Caffe, P.J., Coira, B.L., Onoe, A.T., Kay, S. Mahlburg, Geology of the Vilama caldera: a new interpretation of a large-scale explosive event in the Central Andean plateau during the Upper Miocene, Journal of Volcanology and Geothermal Research (2007), doi: 10.1016/j.jvolgeores.2007.04.002
